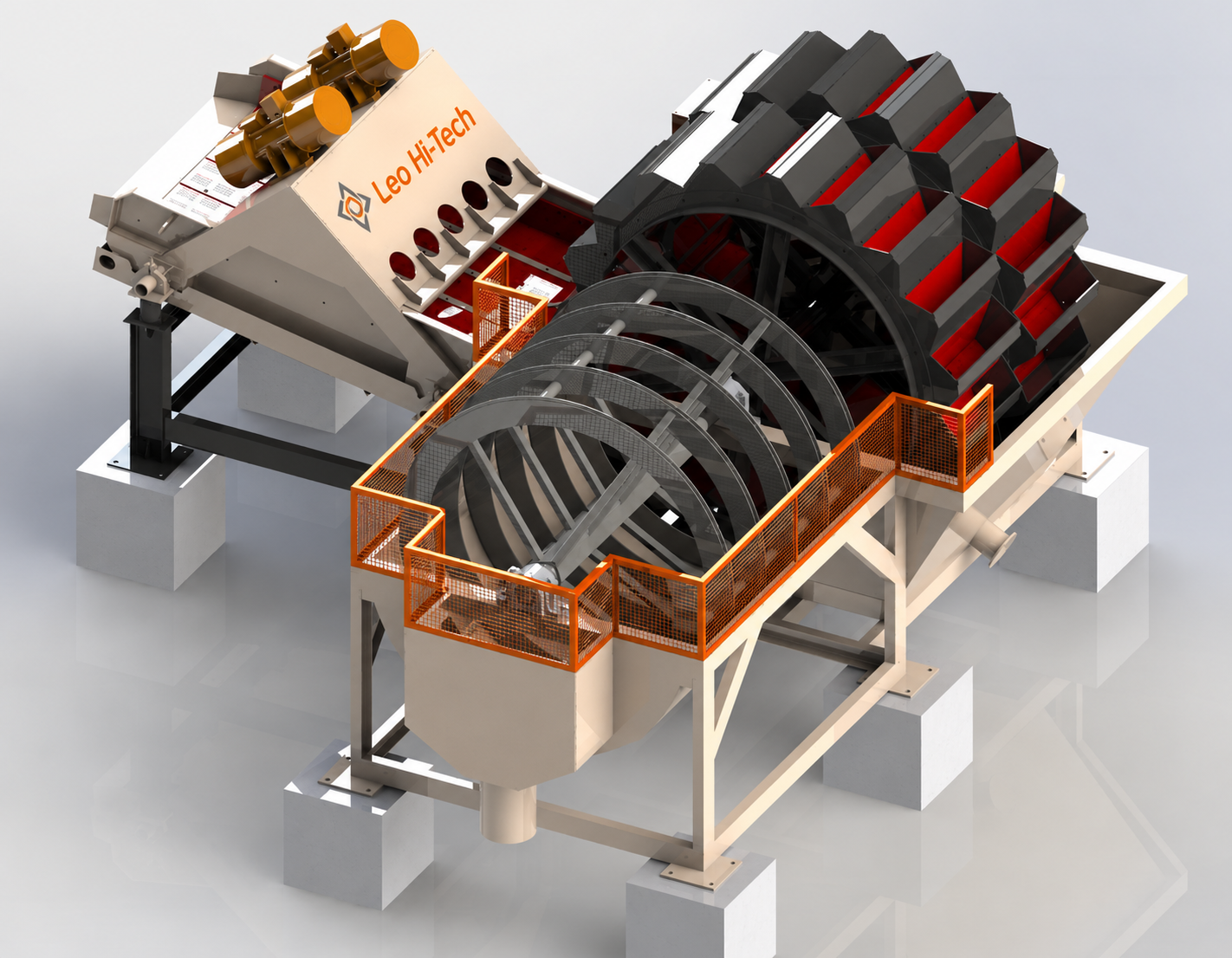

Leo Sandwasher

Features of Product

Makes clean high-quality construction sand.

Variable spiral speed and water input control product gradation.

Gear reducers are capable of high reduction ratios to achieve low spiral speeds and high torque outputs.

A head-end shaft to gearbox coupling ensures proper shaft alignment.

A flexible spider coupling protects the rotating shaft from thrust loads and gear reducer against vibrations

Lower end shaft coupling ensures precise alignment and an easy method for removing the shaft for maintenance.

Sand Washers use pressure hydraulic separation with water as the medium to clean and organise sand particles by weight. Bigger particles weigh more, sink
and are gathered in the base of the trough. The sand particles are transported to the slanted release end by a double pitched steel spiral shaft with
replaceable cast wear shoes. The lighter undesirable particles float to the surface of the claim settling pool and are released over the weirs. Dewatering
happens as the winding shaft transports the settled sand up to the grade of the trough and is released.

Get the Full Product Details - Download PDF

Description

S.NO.	Model	Wheel Diameter (Mtr)	Number of Bucket	Maximum Feed Size	Machine Tank Capacity (Kgs)	Water Tank Capacity	Motor Power	Capacity (TPH)
1	LSW 50	2.27	34	8	3500	4500	5.5KW	40-55
2	LSW 100	2.50	38	8	5000	5000	7.5KW	55-75
3	LSW 150	2.75	42	8	7000	6000	11KW	75-110
4	LSW 200	3.10	48	8	8200	15000	15KW	110-150

Product Specifications

Model	LT 60	LT 80	CF300
Maximum Feed Rate (m3/hr)	200	400	900
Sludge Flow Rate (mtph)	10	20	45
Sludge Pump Power, kW (hp)	15 (20)	22 (30)	22 (30)
Rake Power Requirement, kW (hp)	3.3 (4.5)	3.3 (4.5)	3.7 (5)
Tank Diameter (m)	6	8	12
Flocculant Station Power, kW (hp)	3 (4)	3 (4)	3 (4)
Total Power, kW (hp)	22.05 (30)	29.05 (39)	-
